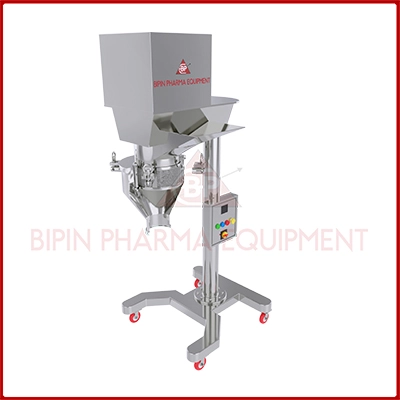

Multi MillAt Bipin Pharma Equipment: Designed For Controlled And Precise Size Reduction
Precisely engineered devices that contain premium quality materials are manufactured by us at Bipin Pharma Equipment Company.
Multi Mill is a self-contained unit that can granulate at high speed, mix, pulverise, shred and chop different kinds of dry and wet materials without any kind of special attachments. It does not use the standard size reduction principles such as, compression, grinding, shearing and impact. The reason is that they might not always produce a controlled reduction of the size. The blades on the multi mills that are swing hammers within a screened area provide more control of the size reduction.
Features of the Multi Mill
Different varieties of mills are manufactured by us under the supervision of skilled experts and have helped us fall under the category of the best Indian multi mill manufacturing company. There are certain features that set us apart from other manufacturers:
• Ease in dismantling and cleaning of all the contact parts
• Easy Mobility of the device
• Functions on the Variable force principle.
• The container below a processing chamber collects all the materials that have been processed.
• It is extremely suitable for both wet and dry granules
We manufacture different kinds of pharmaceutical oriented devices keeping in mind the international standards in order to cater to a global market along with domestic markets.
Product Specification and Operating Principle
• The machines are built using stainless steel of the best quality
• Three factors that manipulate the quality and output of the product are the speed, screen and the shape of the impact edges or beaters.
• The materials pass through a screen both tangentially and radically as it moves through a processing chamber.
• It has four rollers which help in easy mobility of the device whenever the requirement arises.
The machines that are manufactured have the facility of upgradation according to client requirement. You can find different kinds of sizes available for the machine and almost all of them have reasonable and affordable prices.
Only the best and authorized suppliers’ providers are approached when it comes to acquiring the highest-grade and premium quality raw materials for manufacturing the machine. We also manufacture Flame Proof electrical device according to the demand of the client which would amount to certain additional cost. The Machine is engineered in a way so that it can withstand continuous operation
Specification
| Model | MM-100 | MM-200 | MM-500 |
|---|---|---|---|
| Output | 25 to 100 Kgs. / Hr. | 50 to 200 Kgs. / Hr. | 400 to 500 Kgs. / Hr. |
| Rotor Assembly Diameter | 150 mm Approx. | 250 mm Approx. | 350 mm Approx. |
| Rotor Speed | 750 / 1500 / 2300 / 3000 RPM | 750 / 1500 / 2300 / 3000 RPM | 750 / 1500 / 2100 / 3000 RPM |
| Beaters | 12 Nos. knife and impact edges and 2 Nos. scraper blades | 12 Nos. knife and impact edges and 2 Nos. scraper blades | 16 Nos. knife and impact edges and 2 Nos. scraper blades |
| Screen dimension | Inner Diameter 160 mm / Height 135 mm | Inner Diameter 260 mm / Height 135 mm | Inner Diameter 350 mm / Height 200 mm |
| Motor | 1 Hp / 1440 RPM / 440 V. / 50 Hz. AC | 3 Hp / 1440 RPM / 440 V. / 50 Hz. AC | 7.5 Hp / 1440 RPM / 440 V. / 50 Hz. AC |
| Starter | “DOL” with reversible switch | “DOL” with reversible switch | VFD Panel |
| Material charging height | 1250 mm | 1445 mm | |
| Material discharging height | Variable as required by client | 730 mm | Variable as required by client |
| Model No. | BPE_ 1 HP | BPE_3 HP | BPE_5 HP |
| Output | Up to 50 Kgs./hour | 300Kgs./ hour | 500Kgs./ hour |
| Electrical | 415 V, 50 Hz, 1440 RPM | ||
| Motor | 1 H.P. | 3 H.P. | 5 H.P. |
| Operation | VFD Speed Control Based | VFD Speed Control Based | VFD Speed Control Based |
| No. of Beater | 8 Nos. | 12 Nos. | 16 Nos. |
| Change Parts | SS Perforated Screen (Holes Dia MM) | ||
| 1. 0.5, 1.0, 1.5 Sizes | |||
| 2. 2, 3, 4, 5, 6 | |||
| 3. 7, 8, 10, 15, 20,25 | |||
| Optional Features | FLP Motor, FLP Panel | ||
For more information, contact us at Bipin Pharma Equipment and our professionals will be happy to serve you!
Applications
A Multi Mill is a self-contained, portable milling machine that performs a wide range of operations like granulation, pulverization, and the chopping of materials. It's used in various industries due to its flexibility and versatility. Here are the main application areas :
- Chemical Industry
- Multi mills are used in the chemical industry for the milling and processing of chemicals and raw materials.
- Cosmetics Industry
- They are used for the granulation and milling of various ingredients used in the production of cosmetics.
- Food and Beverage Industry
- In the food and beverage industry, multi mills are used for the granulation, milling, and processing of various food ingredients.
- Dyestuff Industry
- Multi mills are used for the milling and granulation of dyes and pigments.
- Plastic Industry
- They are used for the granulation and milling of plastics and other synthetic materials.
- Pesticides/Agrochemical Industry
- Multi mills are used for the granulation, milling, and processing of pesticides, insecticides, and other agrochemicals.
In general, a multi mill is used in any industry that requires size reduction, granulation, pulverization, and similar processes.
